主要产品  / ASI产品介绍  / System Controller

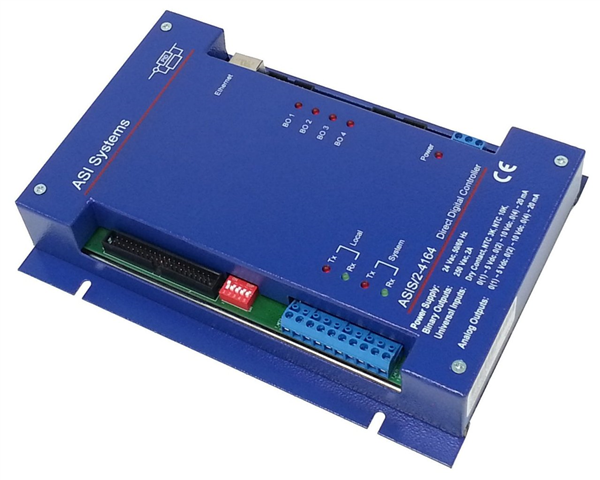

Direct Digital Controller

The ASIS/2-4164 operates as stand-alone controller or as input/output module or as part of a larger control  network communicating with other controllers. This enables integrated control of the complete automation system to ensure optimum facility performance.

加入询价
  • 产品说明

  • Provided two RS-485 and one Ethernet ports for communication and Modbus RTU protocol for system integration

  • RISC ARM 32-bit CPU, 32 MB Flash ROM, 32 MB SDRAM, 256 KB EEPROM/RAM

  • 10 years battery-backed real time clock

  • 4 Binary Outputs

  • 16 Universal Inputs

  • 4 Analog Outputs

  • Red LED for indicate the binary output and power status

  • 2 red and 2 green LED for indicate the System and Local bus communication status

  • LCD Keypad and Touch-Screen Operator Panel accessible

  • The controller address setting by DIP switch combination in each controller

  • Provided Non-volatile memory (EEPROM) retains user settings during power loss

  • Using ASIS Expert configuration software for configured
