Programmable Unitary Controller

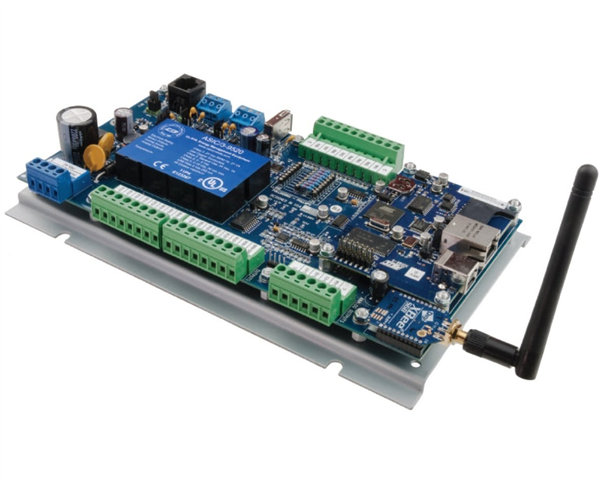

The ASIC/3-9520 Programmable System Controller represents a new generation of communicating distributed direct digital control for unitary equipment and building systems.

The ASIC/3-9520 provides energy management and control of a wide range of building systems including air handlers, chillers, cooling towers, boilers, pumps, lighting, etc. Applications range from autonomous control of retail stores, branch banks, and telephone company buildings to networked control of very large buildings.

  • 产品说明
  • 32-bit ARM7 processor

  • 100Mb Ethernet and optional wireless

  • BACnet communication

  • System Bus for ASI or BACnet MSTP communication

  • Local Bus for ASI and/or Modbus Master RTU

  • Compatible with ASI WebLink & ASI Data Server products

  • USB Device Service Port

  • USB Host

  • Two-part screw terminal input, output and power connections

  • 8 Universal Inputs

  • 8 Binary Relay Outputs

  • 4 Analog Outputs
