主要产品  / ASI产品介绍  / Damper Actuator

Modulating Control
- 20 NM / Feedback

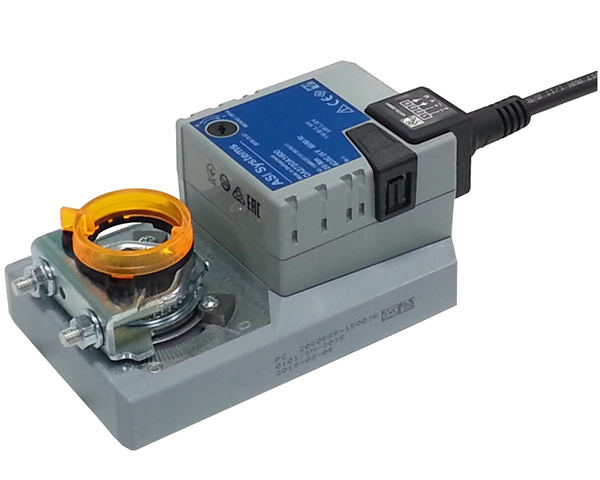

The DA2720A1600 direct-coupled damper actuators modulating operated for:

  • Air dampers

  • Air handling unit

  • Ventilation flaps

  • VAV unit

  • Louvers and reliable control for air damper applications

加入询价
  • 产品说明

  • Simple direct mounting on the damper spindle with an universal spindle clamp

  • Supply with an anti-rotation device to prevent the actuator from rotating

  • Manual Override with push-button possible

  • Provided indicator for damper position

  • Selectable direction of rotation

  • Mounting in any orientation

  • Provided mechanical adjustable end stops to limited at both ends

  • Provided overload protected, requires no limit switches and automatically stops when the end stop is reached

  • Acceptable 0 to 10 Vdc or 2 to 10 Vdc input signal

  • Provided 2 to 10 Vdc position feedback signal

  • Prewired with 1 meter electrical connecting cable
