Split Core Current Switch

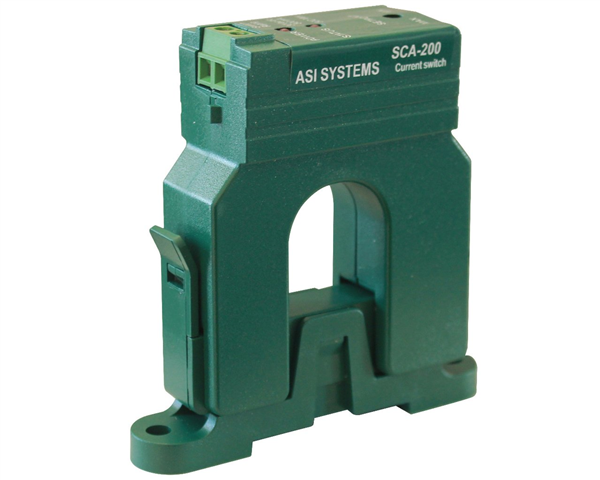

The SCA-200 solid core current switch monitors line current for electrical loads such as pumps, conveyors, lighting, heaters or fan and closes the output contacts when the trip point is exceeded.

加入询价
  • 产品说明

  • The SCA-200 can be opened to install on an existing wire which eliminates the need to disconnect.

  • ​The SCA-200 has a factory set trip point of 2 to 200 Amps to provide current switch status operation.

  • The current switch requires no external power as it is totally powered by induction from the AC line being monitored.

  • The switch output is normally open and when the input current exceeds the trip setpoint the switch closes to provide an on/off digital signal to the controller.
