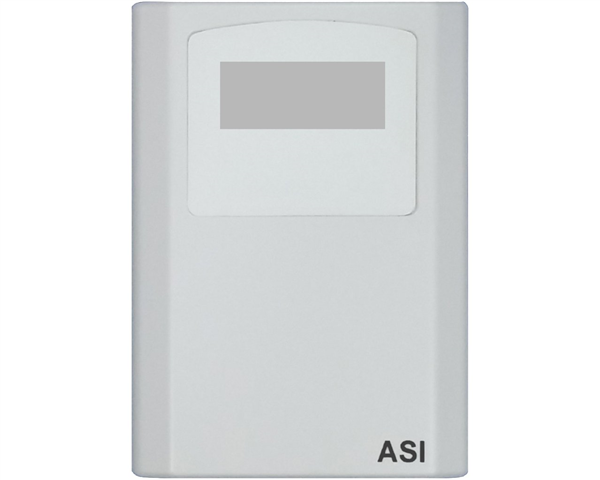

LCD Display Room Enthalpy Transmitters

The DPT100 series Room Enthalpy Transmitters are designed for use in environmental monitoring and control systems where high performance and stability are demanded. It’s state-of-the-art design combines digital linearization and the temperature
compensation with a high accurate and reliable thermoset polymer based capacitance humidity sensor and curve-match NTC thermistor temperature sensor for reliable and accuracy in the most critical applications.

加入询价
  • 产品说明

  • Enthalpy (En): ± 2 kj/kg (± 1 BTU/lb) (50 %RH at 25 °C)

  • Dry Bulb Temperature (T): ± 0.2 °C (0 to 50 °C)

  • ​LCD Display：
    Enthalpy: 0 ~ 340 kj/kg (1 kj/kg resolution) or 0 ~ 146 BTU/lb (1 BTU/lb resolution)
    Dry Bulb Temperature: -30.0 ~ 50.0 °C (0.5 °C resolution)

  • High stable RH sensor element

  • Curve-match NTC Thermistor

  • 2 analog outputs

  • BACnet or Modbus communication
