主要产品  / ASI产品介绍  / Damper Actuator

Two/Three-position Control
- 10 NM

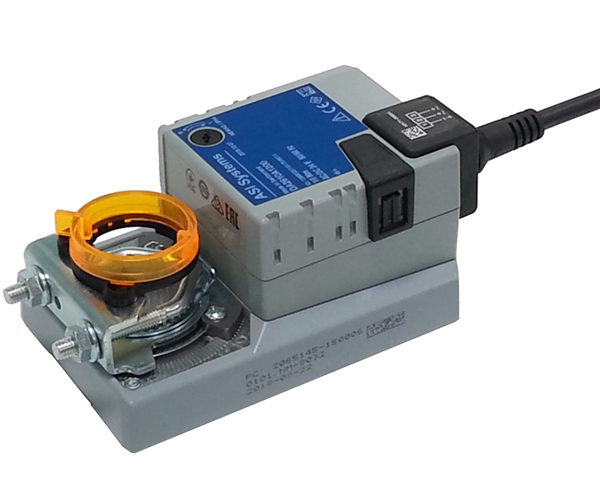

The DA2610A1200 direct-coupled damper actuators 2-position or floating (3-position) operated for:

  • Air dampers

  • Air handling unit

  • Ventilation flaps

  • VAV unit

  • Louvers and reliable control for air damper applications

加入询价
  • 产品说明

  • Simple direct mounting on the damper spindle with an universal spindle clamp

  • Supply with an anti-rotation device to prevent the actuator from rotating

  • Manual Override with push-button possible

  • Provided indicator for damper position

  • Selectable direction of rotation

  • Mounting in any orientation

  • Provided mechanical adjustable end stops to limited at both ends

  • Provided overload protected, requires no limit switches and automatically stops when the end stop is reached

  • Acceptable SPDT input signal for 2-position control and SP3T input signal for floating (3-position) control

  • Pre-wired with 1 meter electrical connecting cable
